Vatti Dishwasher DWID3 (AG Grey), front view

Vatti Dishwasher DWID3 (AG Grey)

DWID3

A fully integrated 60 cm dishwasher for 20 place settings plus a fruit basket, driven by a 55,000 Pa variable-pressure pump through two telescopic spray arms that cover the square of the tub rather than a circle inside it. It washes at 75°C, dries at 105°C, sterilises with UVC and keeps a finished load fresh for seven days. Detergent is dosed automatically from a two-week reservoir, and there are programmes for fruit, toys and baby bottles. 598 mm wide, into a 600 x 780 x 580 mm cabinet opening. AG Grey or White.

2 year warrantyRegister it

Place settings
20
Wash programs
6
Wash pressure
55,000Pa

Specifications

  • Smart Wash, Fruit & Veg Wash, Independent Dry, Power Wash, Standard Wash, Eco Wash
  • 4 app programs: Glass Care 60°C, Intensive 70°C, Toy Care 50°C, Self Clean 65°C
  • 6 additional functions: UV, Smart Dosing, Extra Wash, Half Load Upper, Half Load Lower, 24-hour delay
  • BLDC motor
  • 150 L cavity, three-level rack with pull-out cutlery tray
  • Dual telescopic spray arms, square full-coverage wash
  • 75°C high temperature washing
  • 105°C independent hot air drying
  • UVC sterilisation, up to 99.9%
  • 168 hours air ventilation, 7-day fresh storage
  • Smart detergent dosing, 250 ml reservoir, about two weeks a fill
  • Patented 3-way air circulation
  • Patented dual pump, zero residual water
  • Automatic drain seal
  • Self-cleaning three-layer filter
  • 23 inch full touch colour display, set at 20°
  • Wi-Fi app control
  • Rated power 1,750 W, 220 to 240 V

Dimensions and installation

The figures off the DWID3 drawing, in full. Whether it fits is the question that ends a shortlist, so it is answered here rather than four megabytes into a PDF.

The appliance

Width
598 mm
Height675 mm of door over a 100 mm plinth; the feet adjust 0 to 40 mm
775 mm
Depththe door reaches 620 mm from the back when open to 90°
570 mm
Capacitythe +2 is the fruit and vegetable basket
20+2 place settings
Cavity
150 L
Power220 to 240 V, 50 to 60 Hz
1,750 W

The space it goes in

Cabinet opening, widththe built-in size the manual specifies
600 mm
Cabinet opening, height
780 mm
Cabinet opening, depth
580 mm or more
Hole in the cabinet basebeside the machine, for the hoses and the cord
70 x 70 mm
Socketin the cabinet next to the machine, never behind it
10 A, earthed
Water inletthread at least 10 mm; mains pressure 0.04 to 1.0 MPa
G1/2 angle valve
Drainthe hose needs 280 mm of it
40 mm standpipe
Hose reach, to the leftthe cord reaches 1,100 mm either side
Inlet 1,400 mm, drain 2,000 mm
Hose reach, to the rightmeasured from the side of the machine
Inlet 1,000 mm, drain 1,700 mm

Installation guide (PDF)

Detail

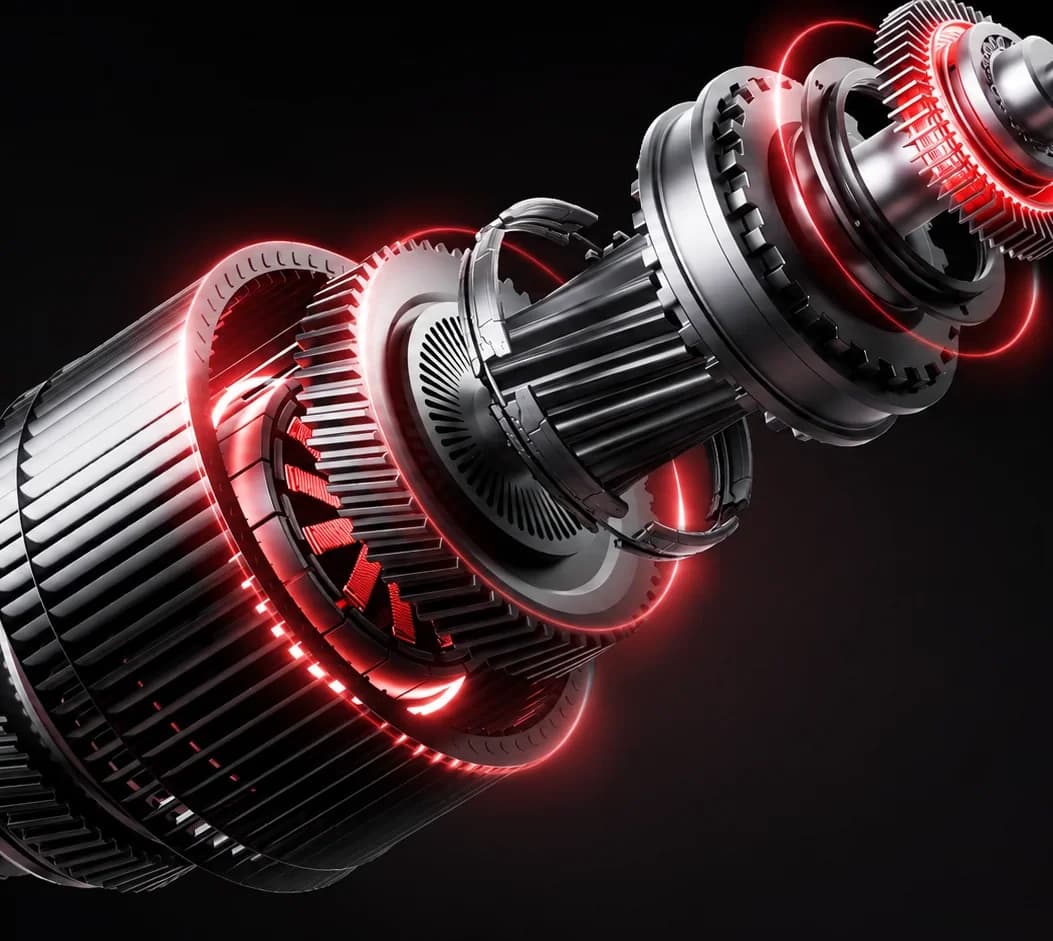

Cutaway of the DWID3 variable-pressure pump motor

55,000 Pa of water pressure

A variable-pressure pump on a BLDC motor, which VATTI rates 30% stronger than a conventional motor and up to 20% more frugal with it. Variable frequency is what lets one pump run flat out on a wok and quietly through the night.

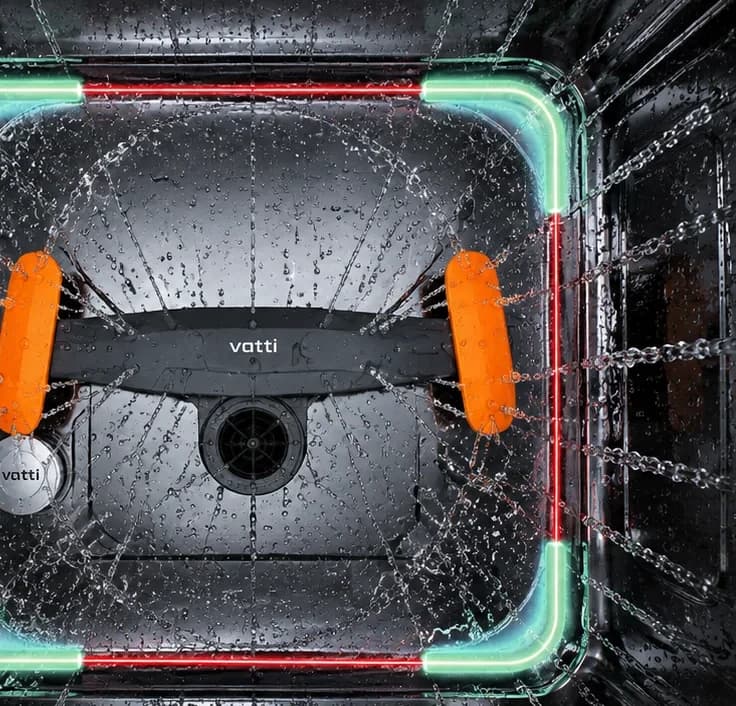

The DWID3 tub from above, the spray arms extended into all four corners

Dual-square, full-coverage wash

Two telescopic spray arms that extend as they turn, so the spray path is a square that reaches the four corners of the tub rather than a circle that misses them. VATTI's patented design, and nationally certified Grade A for cleaning coverage.

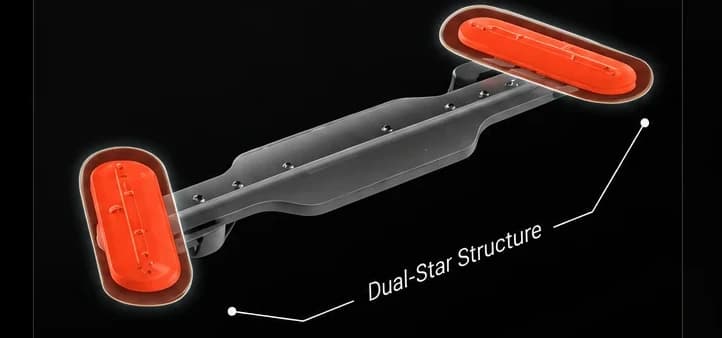

The DWID3 telescopic spray arm with its two satellite heads

The fourth generation of spray arm

The satellite heads ride a curved linkage. Pointed at the short side of the tub the arm pulls in, pointed at a corner it reaches out, so it never touches the wall and never leaves a corner dry. VATTI's first three generations swept a circle; this one covers the square.

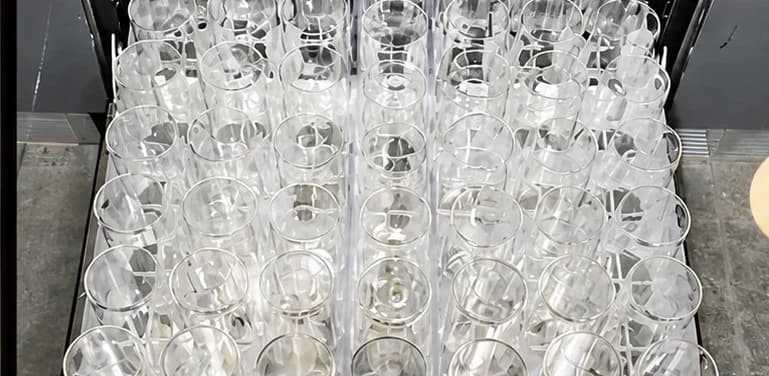

A dense rack of glasses after a DWID3 wash, every one clear

Tested against burnt-on milk

The proof is a rack of deep glasses packed tight, each coated in milk protein baked hard. After the dual-square wash the bottom corners are clean; a round spray arm run on the same load leaves residue in them.

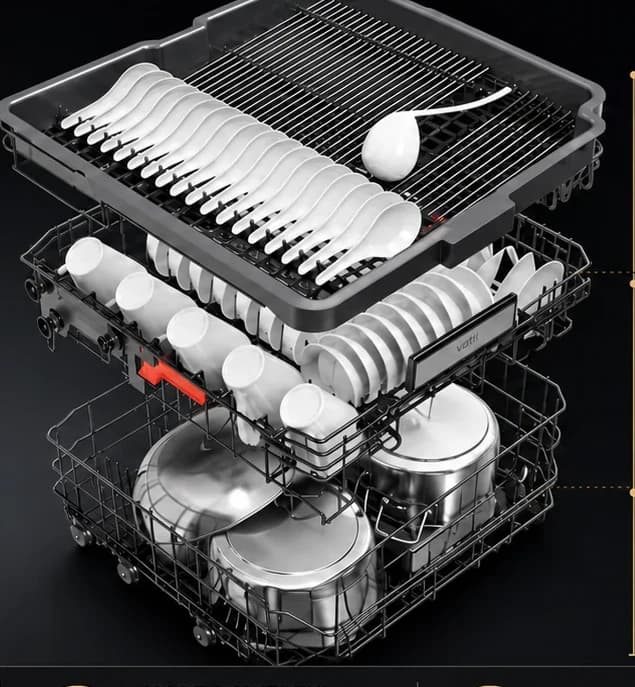

The three racks of the DWID3 drawn apart, cutlery tray on top and pots below

150 L cavity, racks made for Asian kitchens

Three levels: a pull-out cutlery tray on top, a middle rack that lifts to take tall cookware and odd shapes, and a lower rack whose tines fold flat for up to four pots at once. Rated at 20 place settings, plus the basket.

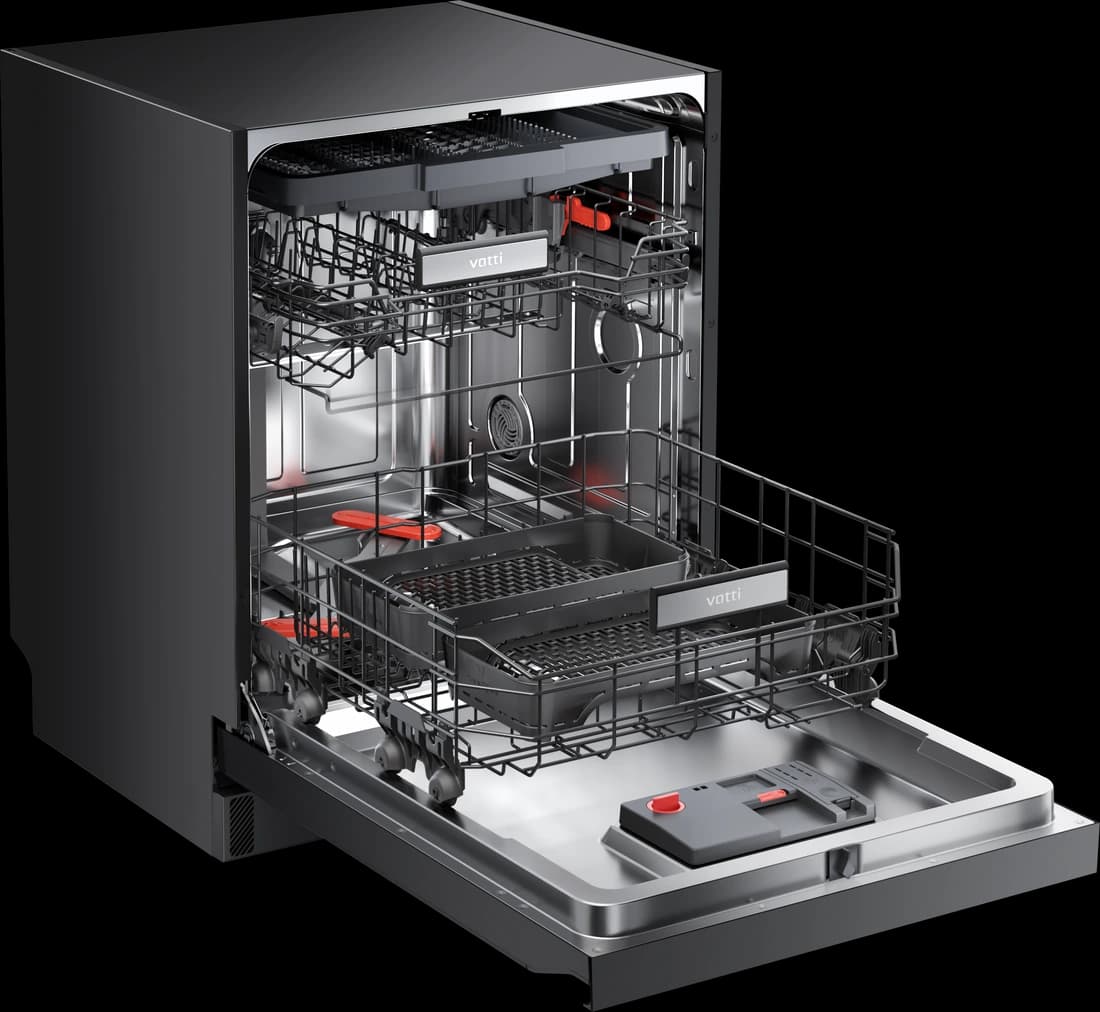

The DWID3 open, the fruit basket sitting on the pulled-out lower rack

130 pieces, and a basket for the fruit

Eighteen rice bowls, nine deep plates, nine shallow, nine noodle bowls, nine tall glasses, nine mugs, 36 pairs of chopsticks and the serving spoons: VATTI's count of a full load. The fruit and vegetable basket comes with the machine and has a programme of its own.

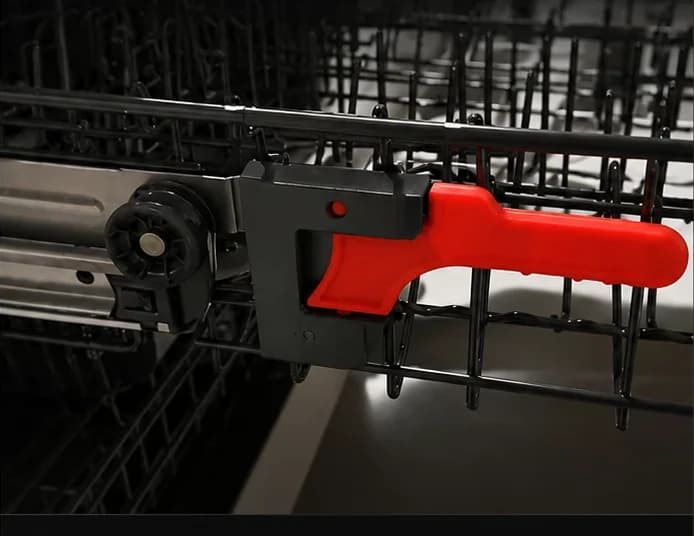

The red height-adjustment handle on the DWID3 lower rack

One pull, 40.87% more room below

Pull the red handle and the lower rack drops, which opens the space above it by 40.87% and takes a pot up to 30 cm tall. A fixed rack cannot.

The DWID3 mid-wash, the 75°C figure lit in the spray

75°C wash

Water hotter than hands can work in, which is what lifts cooking oil off a plate rather than moving it around, and the second of the five sterilisation stages.

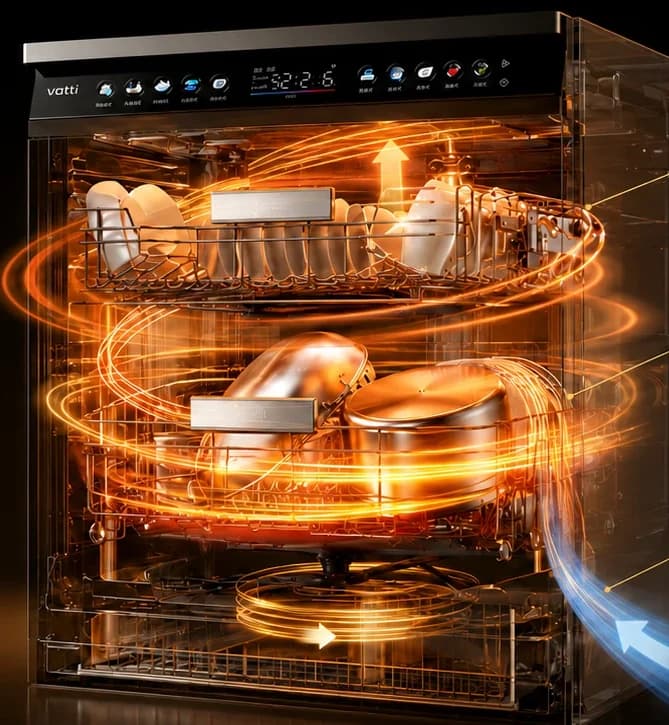

Cutaway of the DWID3 with hot air drawn through the cavity

105°C hot-air drying

Far-infrared heat through two heating ducts and out through an exhaust duct. Air comes in on the right side, is filtered, heated and circulated through the cavity, then pushed out humid, so the load comes out dry with no water marks and no smell. VATTI rates the stage at 99.99% sterilisation.

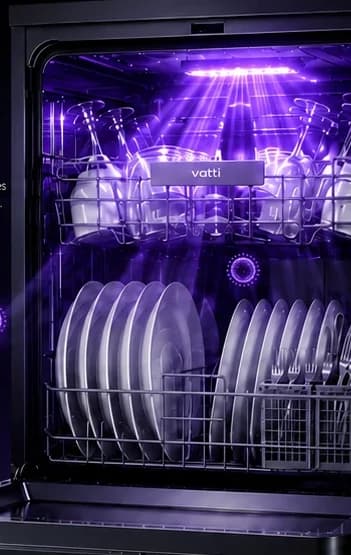

The DWID3 cavity under the UVC lamp

UVC sterilisation, up to 99.9%

A UVC lamp breaks down bacterial DNA and RNA after the wash, and in storage mode it comes on periodically for up to 168 hours. Physical sterilisation with no chemical residue, from a lamp rated for over 10,000 hours.

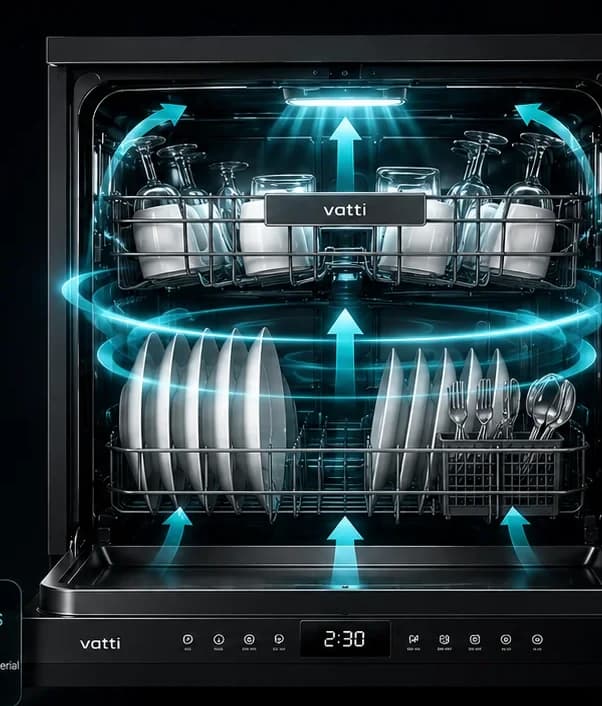

Air circulating through the closed DWID3

Seven days of fresh air

After the cycle the machine changes its air every three hours, removes the moisture and runs the UVC lamp, so a load left inside stays hygienically fresh for up to seven days with the door shut. A door that opens itself to dry lets the kitchen in: dust, damp, and whatever crawls.

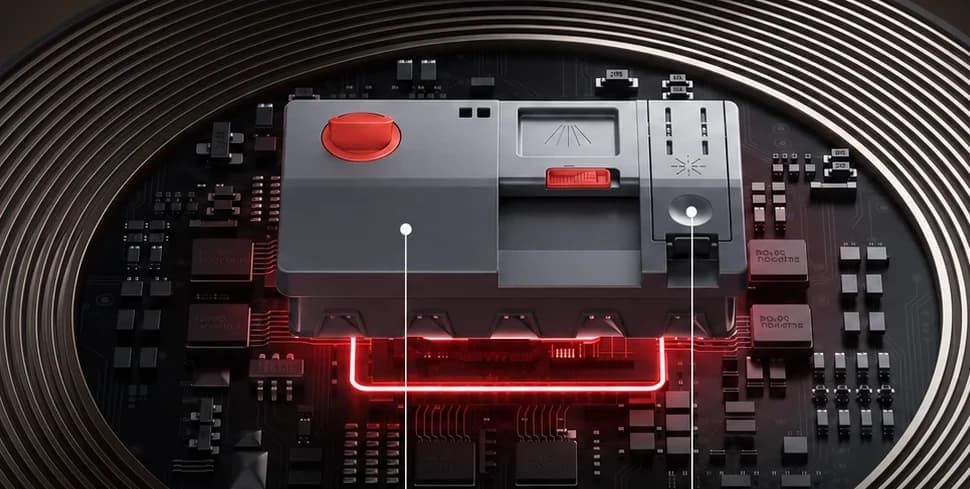

The DWID3 dispenser with its detergent and rinse-aid reservoirs

Smart detergent dosing, refilled every fortnight

A 250 ml reservoir of liquid detergent and another of rinse aid. Each wash is dosed to its soil level, so one fill lasts about two weeks of normal use, and the same dispenser still takes a tablet or powder for a single wash. Standard dishwasher detergent, nothing proprietary.

A tomato, cherries and grapes dropping into water

One-touch fruit and vegetable wash

A 26-minute soft-water programme that VATTI measures at 95% of pesticide residue removed and 92.7% of insecticide, without touching taste or nutrition. Grapes, strawberries, blueberries and cherries get a gentle rolling wash rather than a blast.

  • Grapes and a tomato under warm water

    35°C warm pre-rinse

    Softens surface dirt and residue before the deep clean.

  • A spray head over lettuce and cherry tomatoes

    360° high-pressure spray

    Multi-angle jets reach every part of the produce.

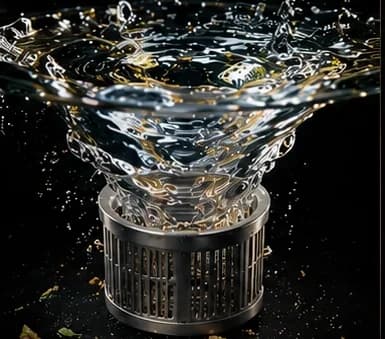

  • Water pouring through the filter

    Circulating filtration

    The water is filtered as it circulates, so dirt is not sprayed back on.

  • Broccoli, lettuce and peppers rinsed in a bowl

    Clean rinse

    Multi-stage rinsing before the basket comes out.

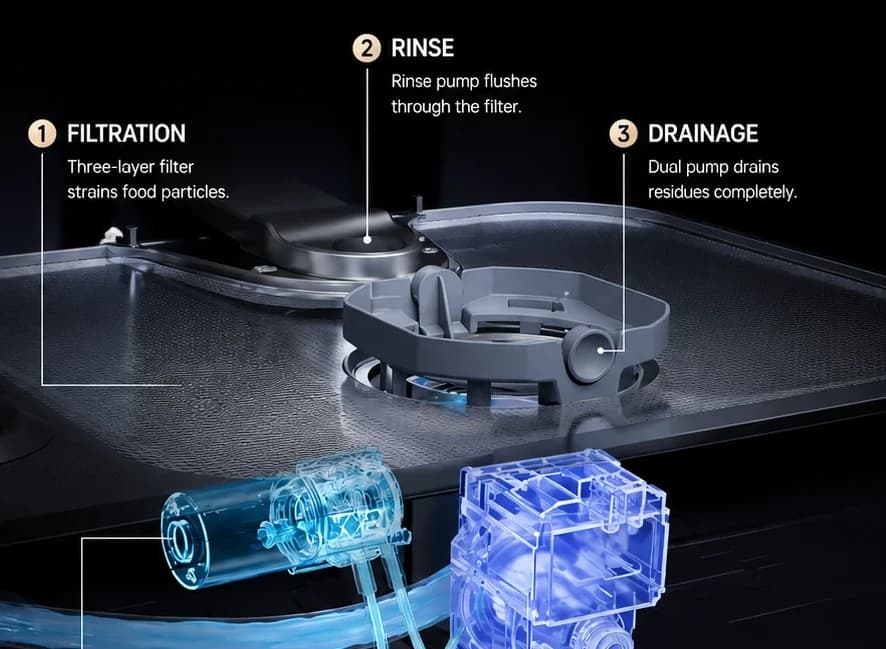

The DWID3 sump and its two pumps, each stage numbered

Two pumps, nothing left behind

Filtration, rinse, drainage, suction and an anti-odour trap: five stages that clear the residual water and the food debris a single pump leaves sitting in the sump. No standing water, no backflow, no smell, and nothing to scoop out by hand.

The DWID3 drain seal, closed after draining

Automatic drain seal

When draining finishes the drain closes itself, so waste-water odour cannot come back up the pipe and cockroaches cannot come in through it. A conventional drain stays open.

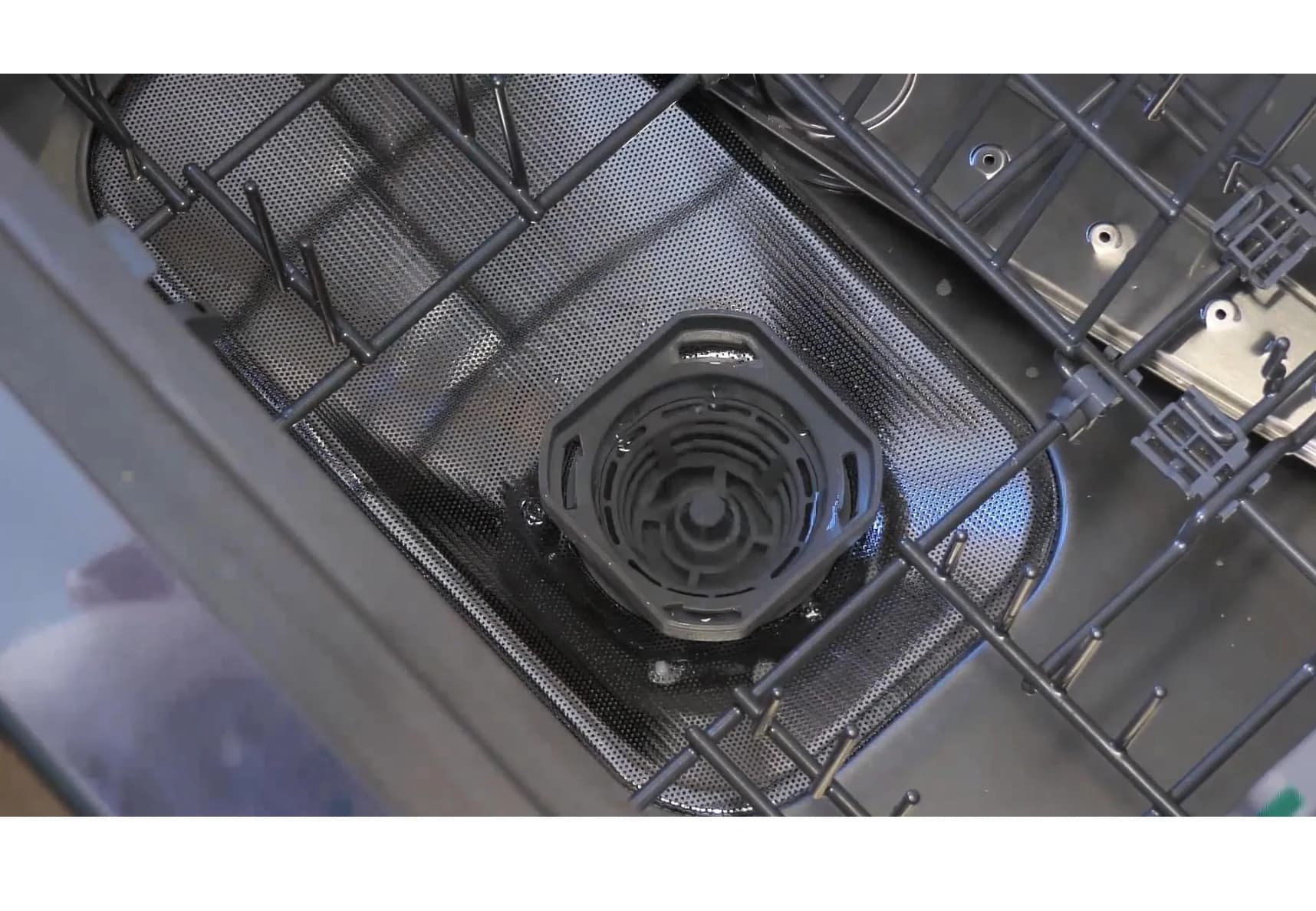

The DWID3 filter seated in the floor of the tub

A filter that rinses itself

Coarse, fine and flat micro filter, in three layers. During draining the stack is flushed automatically, so food residue does not sit in it between washes.

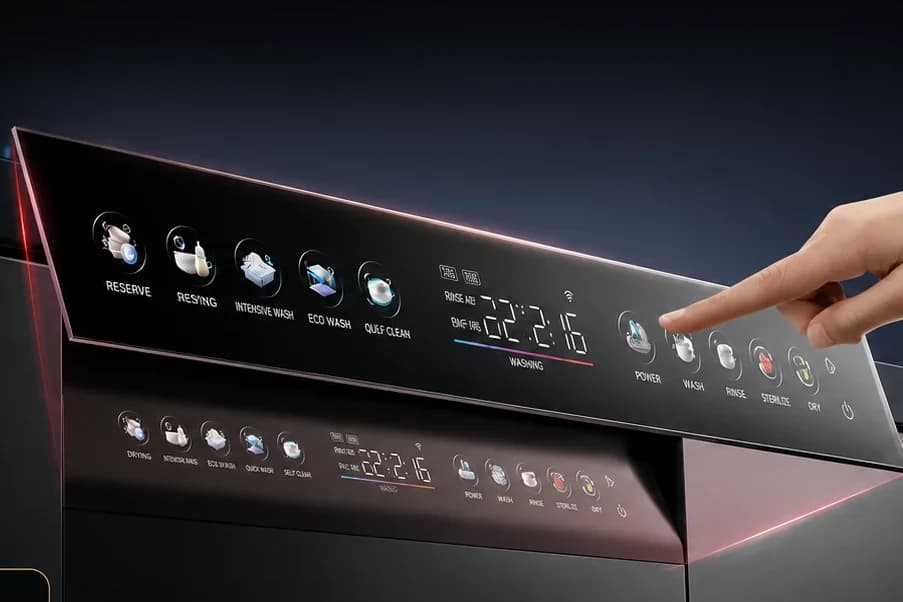

A hand on the DWID3 touch panel

23 inch touch screen, set at 20°

A full-width colour touch panel in abrasion-resistant IMD, angled at 20° so it reads without bending down. Programmes, functions and the timer on one surface, and the same controls from the VATTI app over Wi-Fi.

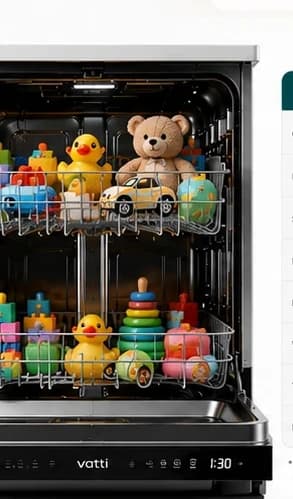

  • The DWID3 loaded with children's toys

    Toy care, 50°C

    Pre-rinse, a 50°C wash, multi-rinse and dry, for plastic and silicone toys. Not the wooden or battery ones.

  • The DWID3 drying a load under warm light

    Independent drying

    Dry a hand-washed load or a batch of baby bottles without running a wash first.

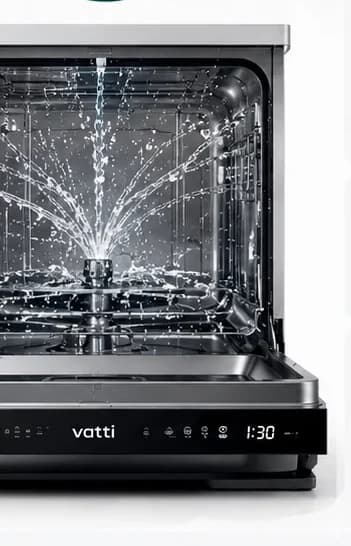

  • The DWID3 empty, washing its own cavity

    Self-clean, 65°C

    118 minutes at 65°C through the tub, the arms, the filter and the pipes. The app reminds you every one to two months.

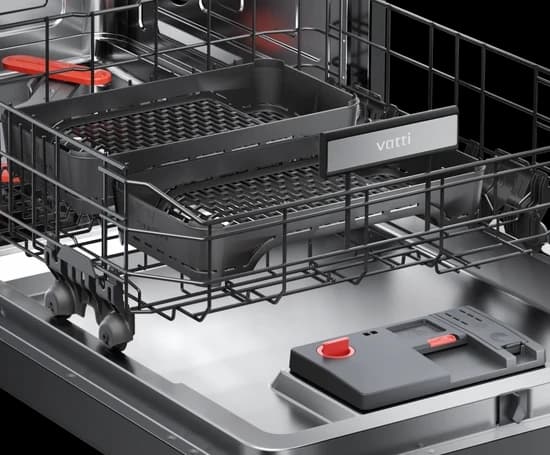

  • The basket on the DWID3 lower rack

    Fruit and vegetable basket

    Supplied with the machine, with the produce programme to go with it.

In action

A presenter walks through the DWID3 in a kitchen, in Mandarin with Chinese captions: the 55,000 Pa pump, the square spray path, the 20+2 capacity, the detergent reservoir, the three-duct hot-air drying, the 23 inch panel and starting a wash from the app.14 September 2026 · 1m 55s

Questions about the DWID3

What size cabinet opening does the DWID3 need?
The machine is 598 mm wide, 775 mm tall and 570 mm deep, and the manual specifies a built-in opening of 600 x 780 x 580 mm, the standard 60 cm slot. Leave a 70 x 70 mm hole in the base of the cabinet beside it for the hoses and the cord, and put the socket in that neighbouring cabinet, not behind the machine. The feet adjust 0 to 40 mm to meet the counter.
How much does 20+2 place settings actually hold?
VATTI's count of a full load is about 130 pieces: eighteen rice bowls, nine each of deep plates, shallow plates, noodle bowls, tall glasses and mugs, 36 pairs of chopsticks and the serving spoons. The +2 is the fruit and vegetable basket. The lower rack drops on one pull to take a pot 30 cm tall, and half load washes the top or bottom rack alone on the days it is not worth filling both.
What is the difference between the AG Grey and the White DWID3?
The front panel, and nothing else. Both are the same 55,000 Pa machine with the same racks, programmes and drying. AG Grey is here and White is here.
Does the DWID3 dry properly, or come out damp?
It dries with heat, not with what is left in the cavity: far-infrared air at 105°C through two heating ducts, with an exhaust duct carrying the moisture out. Two pumps clear the sump so nothing is left standing under the baskets, and rinse aid is dosed automatically from its own reservoir. There is also an independent drying programme for a load washed by hand.
Can dishes be left in it?
Up to seven days. In storage mode the machine changes its air every three hours, keeps the cavity dry and runs the UVC lamp periodically, all with the door shut. That is what the 168 hours on the spec sheet means.
Can it wash fruit and vegetables, or toys?
Both. The fruit and vegetable programme runs 26 minutes in soft water in the supplied basket, and VATTI measures it at 95% of pesticide residue removed. Toy Care is a 50°C wash from the app for plastic and silicone toys; wooden, plush, paper and battery toys stay out. Baby bottles go in on a normal wash or the independent dry.
How does the detergent dosing work?
Fill the 250 ml liquid detergent reservoir and the rinse-aid reservoir and the machine doses each wash by how dirty the load is, which comes to about two weeks of normal use per fill. It takes any standard dishwasher detergent. For a single wash you can still drop a tablet or powder in the dispenser instead; the two modes are not used together.
What does the app add?
Four programmes that are not on the panel: Glass Care at 60°C, Intensive at 70°C, Toy Care at 50°C and Self Clean at 65°C. It also starts a wash remotely over Wi-Fi and sets the self-clean reminder at 30, 60 or 90 days.
How is the DWID3 itself cleaned?
The filter rinses itself every time the machine drains, and lifts out in three layers for a tap rinse when it needs one; VATTI suggests every three days. Self Clean runs 118 minutes at 65°C through the tub, the spray arms, the filter and the water channels, every one to two months. The drain seals itself after draining, so nothing comes back up.
What warranty does the DWID3 carry?
The VATTI warranty agreement does not name dishwashers in its two-year appliance clause, so the term is the one your dealer states at purchase. Register the machine at VATTI eWarranty when you buy it, and keep the invoice: a claim needs both.
How much is the DWID3 and where can I buy it?
VATTI Malaysia does not sell online. Find your nearest authorised dealer in the dealer directory, or send us your kitchen layout and we will point you at the one that stocks it and installs it.
